Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Lugar de origem:

Shenzhen, China

Marca:

Polcd

Certificação:

RoHS, ISO9001

Número do modelo:

P024H037-IPS

Contacte-nos

Peça umas citações
Detalhes do produto
Resolução:
2,4 polegadas 240x320
Interface:
4 fios spi
Driver IC:
ST7789V
Brilho (cd/m²):
lêndea 300
Ângulo de visão:
IPS todos os ângulos de visão
Área de exibição:
36.72 (h) x48.96 (v) mm
Alfinete:
14 Pin
Termos do pagamento & do transporte
Quantidade de ordem mínima
1 peça
Preço
Please contact us for latest price
Detalhes da embalagem
Tamanho de FCL: empacotamento de 40*30*20cm/amostra: 20*18*13cm
Tempo de entrega
1 a 7 dias úteis
Termos de pagamento
T/t, l/c, cartão de crédito, PayPal, d/a, d/p, Western Union, MoneyGram
Habilidade da fonte
40.000 PCs por dia
Descrição do produto

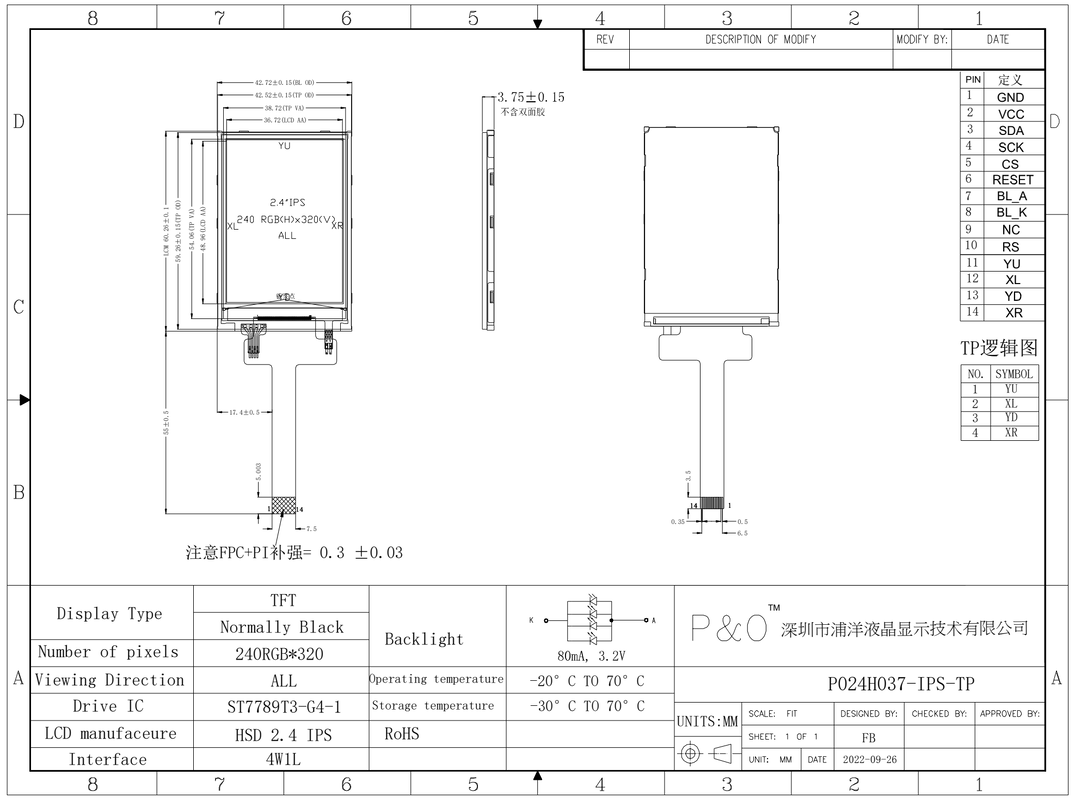

Parameter:

Model P024H037-IPS
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x2.25mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.


Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display 0
